2 Core Spiral Steel Armored Indoor Fiber Optic Cable

Brand Name : Fiberplan

Model Number : GJFJV Indoor armored cable

Certification : ISO 9001; TÜV certificate

Place of Origin : China

MOQ : 1Km

Price : Negotiation

Payment Terms : L/C, L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 km per month

Delivery Time : 5~8 work days

Packaging Details : Wooden Drum

Application : Indoor Use

Standard Colors : SM: Blue, MM: Gray/Black

Material : LSZH/TPU

Fiber Count : 4

Outer Diameter : 2.0-5.0mm (customizable)

Reinforcement Element : Aramid yarn/Metallic spiral armor

Fiber Attenuation : ≤0.4dB/km

Operating Temperature : -20°C to 70°C

Metal Armor Structure : Multi-Core Overall Armor

Crush Resistance : 1000N/100mm

Armor Material : 201/304 stainless steel

Cable Printing : Neutral or customized

Tube Count : Single-tube mini cable

Testing Method : OTDR testing for each core

Contact Now

2 Core Spiral Steel Armored Indoor Buy Fiber Optic Cable

Description

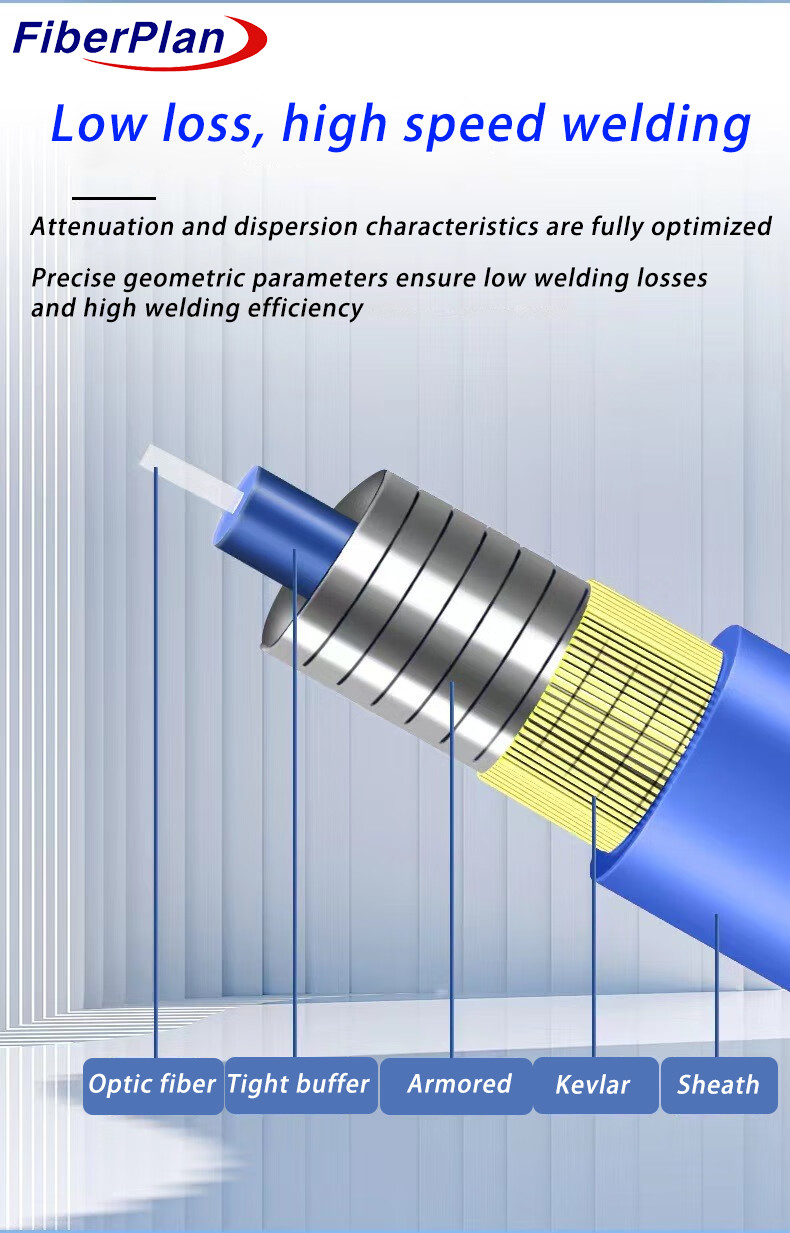

1. Multiple fibers with a tight buffer of either Φ900μm or Φ600μm.
2. Incorporates spiral steel armor for enhanced durability.

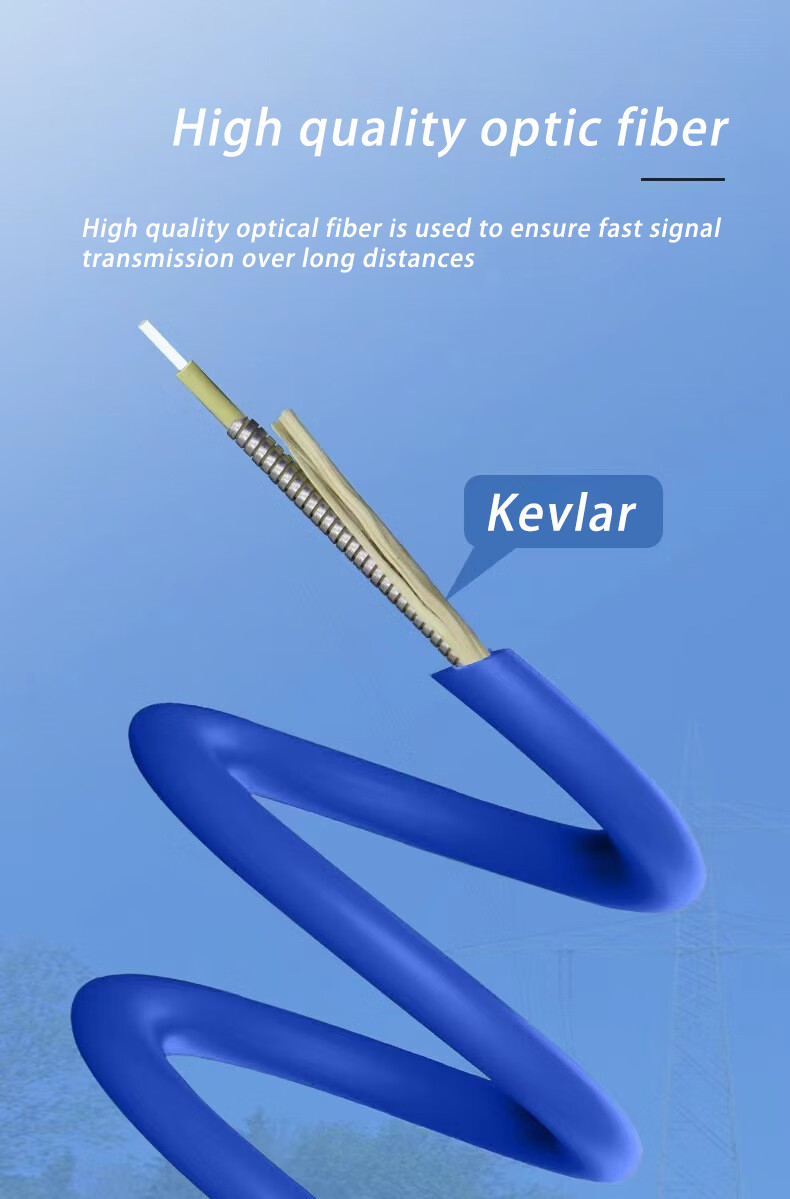

3. Features two layers of Kevlar yarn for added strength.
4. Double sheath options include LSZH, PVC, or OFNR jacket, providing dual layers of shielding and ins-

ulation.

Applications

1. Suitable for both indoor and outdoor distribution applications.
2. Primarily used in pigtails and patch cords.
3. Employed for optical connections within optical communication equipment rooms and optical distribution

frames.
4. Utilized for optical connections in various optical apparatus and equipment scenarios.

Characteristics

1. Exhibits favorable mechanical and environmental characteristics.
2. Flame retardant properties adhere to relevant standards.
3. Mechanical attributes align with specified standards.
4. Possesses a soft and flexible nature, facilitating easy splicing and accommodating large-capacity data

transmission.
5. Designed to meet diverse market and client requirements.

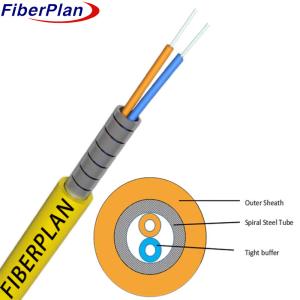

Cable construction details

Technical Parameters:
Out Diameter(MM) 2.0 Weight(KG) 15.0
2.8 18.0
3.0 18.0
Storage temperature(℃) -20 ~ +60
Min Bending Radius(mm) Long term 10D
Min Bending Radius(mm) Short term 20D
Min allowable Tensile Strength(N) Long term 300
Min allowable Tensile Strength(N) Short term 1000
Crush Load (N/100mm) Long term 500
Crush Load (N/100mm) short term 1000

Fiber characteristic

Fiber style Unit SM
G652		 SM
G652D		 MM
50/125		 MM
62.5/125		 MM
OM3-300
condition nm 1310/1550 1310/1550 850/1300 850/1300 850/1300
attenuation dB/km ≤ ≤ ≤ ≤3.0/1.0 ≤3.0/1.0
0.36/0.23 0.34/0.22 3.0/1.0 ---- ----
Dispresion 1550nm Ps/(nm*km) ---- ≤18 ---- ---- Dispresion
1625nm Ps/(nm*km) ---- ≤22 ---- ---- 　
Bandwith 850nm MHZ.KM ---- ---- ≧400 ≧160 Bandwith
1300nm MHZ.KM ---- ---- ≧800 ≧500 　
Zero dispersion wavelength nm 1300-1324 ≧1302,
≤1322		 ---- ---- ≧ 1295,
≤1320
Zero dispresion slope nm ≤0.092 ≤0.091 ---- ---- ----
PMD Maximum Individual Fibr 　 ≤0.2 ≤0.2 ---- ---- ≤0.11
PMD Design Link Value Ps(nm2*km) ≤0.12 ≤0.08 ---- ---- ----
Fibre cutoff wavelength λc nm ≧ 1180,
≤1330		 ≧1180,
≤1330		 ---- ---- ----
Cable sutoff wavelength λcc nm ≤1260 ≤1260 ---- ---- ----
MFD 1310nm um 9.2+/-0.4 9.2+/-0.4 ---- ---- ----
1550nm um 10.4+/-0.8 10.4+/-0.8 ---- ---- ----
Numerical
Aperture(NA)		 　 ---- ---- 0.200+/
-0.015		 0.275+/-0.
015		 0.200+/-0
.015
Step(mean of bidirectional
measurement)		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
Irregularities over fiber
length and point		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10

Dicontinuity
Difference backscatter
coefficient		 dB/km ≤0.05 ≤0.03 ≤0.08 ≤0.10 ≤0.08
Attenuation uniformity dB/km ≤0.01 ≤0.01 　 　 　
Core dimater um 　 　 50+/-0.9 62.5+/-2.4 50+/-0.8
Cladding diameter um 125.0+/-0.2 125.0+/-0.2 125.0+/-0.2 125.0+/-0.3 125.0+/-0.3
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242+/-5 242+/-5 242+/-6 242+/-6 242+/-5
Coating/chaffinch
concentrically error		 um ≤12.0 ≤12.0 ≤12.0 ≤12.0 ≤12.0
Coating non circularity % ≤6.0 ≤6.0 ≤6.0 ≤6.0 ≤6.0
Core/cladding conentricity error um ≤0.5 ≤0.5 ≤1.3 ≤1.3 ≤1.3
Curl(radius) um ≤4 ≤4 ---- ---- ----

2 Core Spiral Steel Armored Indoor Fiber Optic Cable

2 Core Spiral Steel Armored Indoor Fiber Optic Cable

2 Core Spiral Steel Armored Indoor Fiber Optic Cable
