Mini Bare Kevlar Strengthen Fiber Distribution Fiber Optic Cable
Description

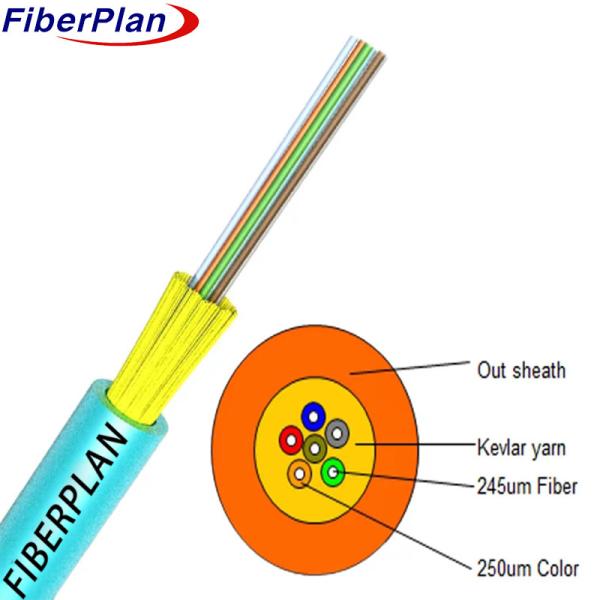

The break-out indoor cable is constructed using simplex cables as subunits. In the center of the core, a non-
metallic strength member made of Fiber Reinforced Plastic (FRP) provides structural support. The subunits
are stranded around this central core. To enhance protection and safety, the cable is finished with a jacket
made of either PVC or LSZH (Low Smoke, Zero Halogen, Flame-retardant) material. This design ensures
durability, flexibility, and compliance with safety standards for indoor applications.
Application
-
1 Indoor Cabling, Breakout Applications: Specifically designed for indoor cabling, this cable is well-suited for
-
breakout scenarios, providing reliable connectivity within buildings.
-
2 Pigtail for Communication Equipment: Functions seamlessly as a pigtail for communication equipment,
-
ensuring efficient and dependable connections.
-
3 Compatibility with Communication Equipment: Tailored to meet the requirements of communication equipment,
-
ensuring suitability and effective service.
-
4 All-Purpose Mini Indoor Cable: Versatile and compact, serving as an all-purpose mini indoor cable suitable
-
for various communication needs.
-
5 MPO, MTP Connector Compatibility: Designed to work seamlessly with MPO and MTP connectors, offering
-
flexibility and compatibility with different connector types.
-
Characteristics
1 Ideal for indoor distribution, suitable for creating patch cords and pigtails.
2 Features a multi-cable design with independent strength members.
3 Utilizes a non-metal central strength member for durability.
4 Enhanced strength with high-strength Kevlar yarn member.
Cable Mechanical characteristic
| Items |
Cable diameter |
Weight |
| 24 cores |
10 |
54.00kg/km |
| 48 cores |
10 |
78.00kg/km |
| 72 cores |
11.5 |
90.00kg/km |
| 96 cores |
12.5 |
115.00kg/km |
| 144 cores |
14.5 |
135.00kg/km |
| Storage temperature(℃) |
-20 ~ +60 |
| Min Bending Radius(mm) |
Long term |
10D |
| Min Bending Radius(mm) |
Short term |
20D |
| Min allowable Tensile Strength(N) |
Long term |
1000 |
| Min allowable Tensile Strength(N) |
Short term |
2000 |
| Crush Load (N/100mm) |
Long term |
1000 |
| Crush Load (N/100mm) |
short term |
2000 |
Fiber characteristic
| Fiber style |
Unit |
SM
G652 |
SM
G652D |
MM
50/125 |
MM
62.5/125 |
MM
OM3-300 |
| condition |
nm |
1310/1550 |
1310/1550 |
850/1300 |
850/1300 |
850/1300 |
| attenuation |
dB/km |
≤ |
≤ |
≤ |
≤3.0/1.0 |
≤3.0/1.0 |
| 0.36/0.23 |
0.34/0.22 |
3.0/1.0 |
---- |
---- |
| Dispresion |
1550nm |
Ps/(nm*km) |
---- |
≤18 |
---- |
---- |
Dispresion |
| 1625nm |
Ps/(nm*km) |
---- |
≤22 |
---- |
---- |
| Bandwith |
850nm |
MHZ.KM |
---- |
---- |
≧400 |
≧160 |
Bandwith |
| 1300nm |
MHZ.KM |
---- |
---- |
≧800 |
≧500 |
| Zero dispersion wavelength |
nm |
1300-1324 |
≧1302,
≤1322 |
---- |
---- |
≧ 1295,
≤1320 |
| Zero dispresion slope |
nm |
≤0.092 |
≤0.091 |
---- |
---- |
---- |
| PMD Maximum Individual Fibr |
≤0.2 |
≤0.2 |
---- |
---- |
≤0.11 |
| PMD Design Link Value |
Ps(nm2*k
m) |
≤0.12 |
≤0.08 |
---- |
---- |
---- |
| Fibre cutoff wavelength λc |
nm |
≧ 1180,
≤1330 |
≧1180,
≤1330 |
---- |
---- |
---- |
Cable sutoff
wavelength λcc |
nm |
≤1260 |
≤1260 |
---- |
---- |
---- |
| MFD |
1310nm |
um |
9.2±0.4 |
9.2±0.4 |
---- |
---- |
---- |
| 1550nm |
um |
10.4±0.8 |
10.4±0.8 |
---- |
---- |
---- |
Numerical
Aperture(NA) |
---- |
---- |
0.200±0.015 |
0.275±0.
015 |
0.200±0
.015 |
Step(mean of bidirectional
measurement) |
dB |
≤0.05 |
≤0.05 |
≤0.10 |
≤0.10 |
≤0.10 |
Irregularities over fiber
length and point |
dB |
≤0.05 |
≤0.05 |
≤0.10 |
≤0.10 |
≤0.10 |
